As-Built
“Because reliable data is the key to a successful project”
LA360VR offers custom-made As-Built service to meet specific needs, whether a residential, commercial, or industrial project. With the latest technology in 3D laser scanning, we capture the exact dimensions of any existing space on any condition to create a detailed digital representation of space with 3D CAD models and precise and accurate as-built drawings. Our high-precision 3D laser scanner provides accuracy up to ¼” (6mm), so you can start any project with confidence and perfect knowledge of existing dimensions.
Our deliverables include:
3D CAD Model
CAD drawing (DWG) and BIM/3D including Revit (RVT), ArchiCAD (PLN), SketchUp (SKP)
Architectural CAD Plans
Floor Plan
Plan showing the inside of a structure and building where partitions, walls, and openings (doors & windows). Additional elements can also be represented depending on the floor plan needs, like plumbing fixtures (bathtub, sink, toilet) or Fixed elements (kitchen cabinets, countertop).

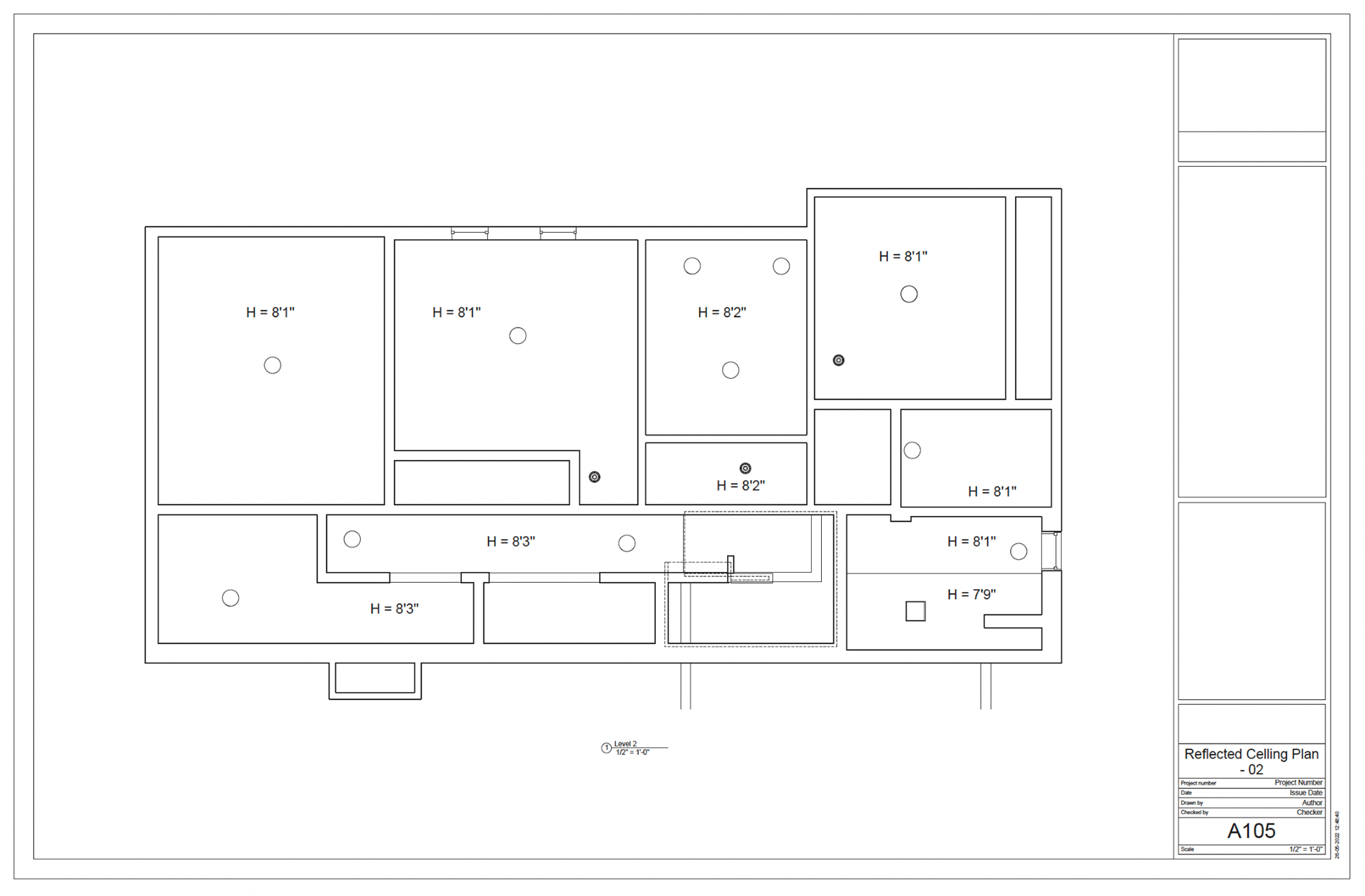

Reflected Ceiling Plan
While a Floor plan represents the footprint of a space (width and length), a reflected ceiling plan will provide the ceiling height and the position and types of lighting in each room.

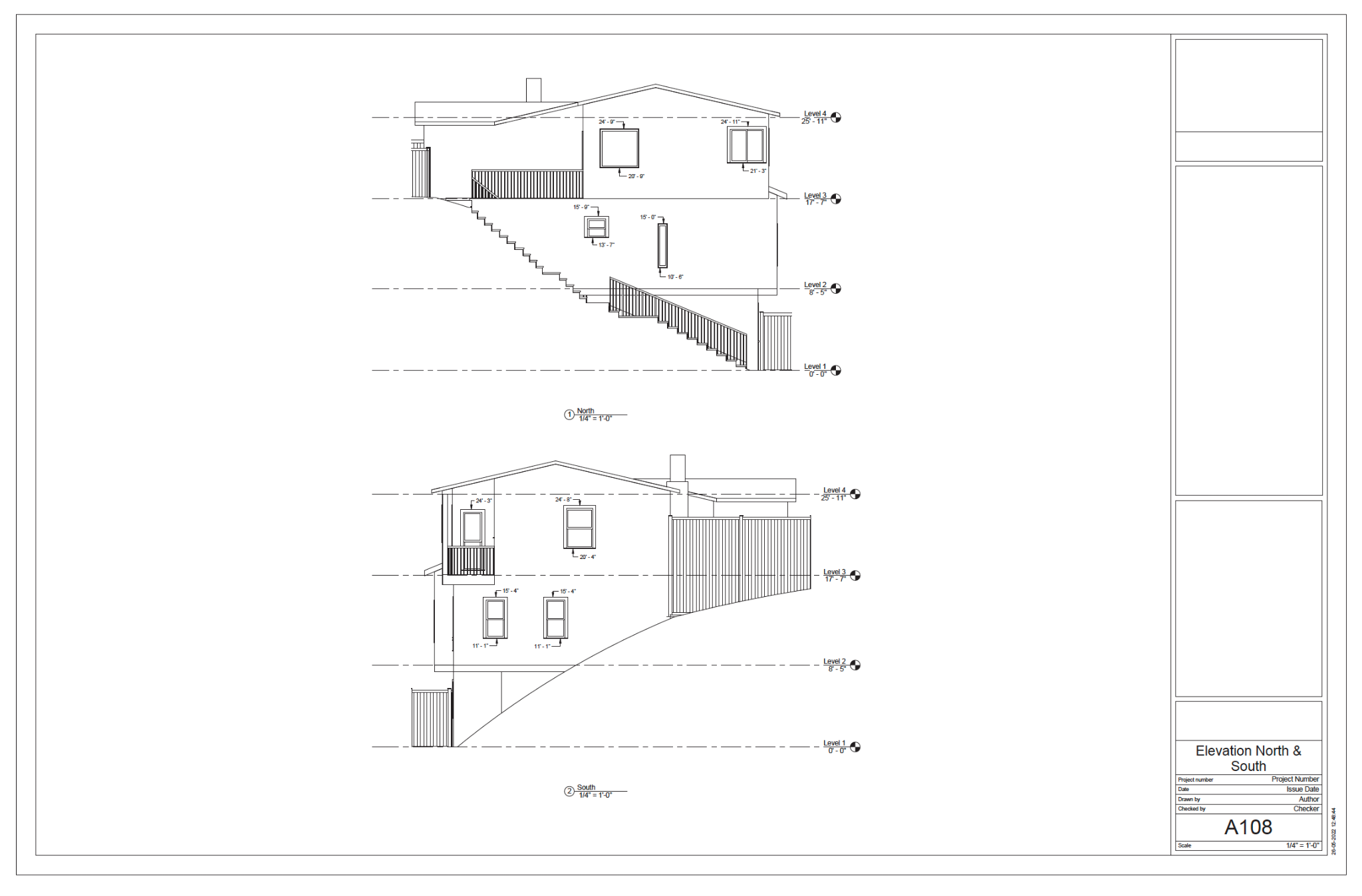

Elevation Plan
Plan showing the side views of structures. To generate elevation plans, we capture the exterior perimeter of a structure far enough to see the roof lines and the entire side. Generally and assuming that each side is accessible, we create four elevation drawings (North, South, East & West)

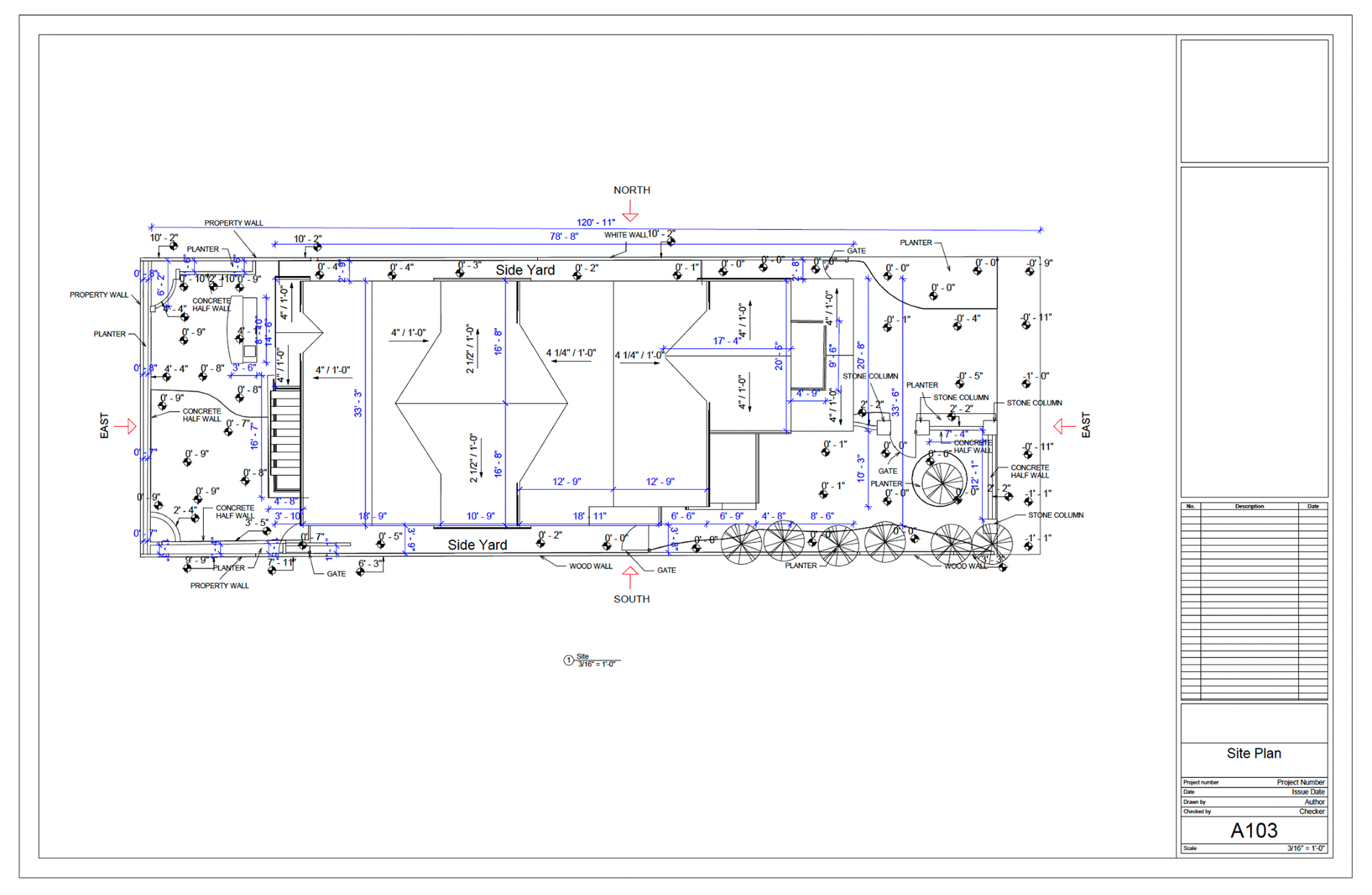

Site Plan
Floor Plan with dimensions showing the entire lot, including the existing locations of the structures, parking area, and fixed exterior elements, like pool, decks, etc. A Site Plan is helpful for landscape architects & designers, structure addition, or pool construction.
3D Virtual Tour
Learn more about our As-Built Solutions on SCAN360VR
